The materials for the synthesizer workshop included ATtiny85 microcontrollers, loudspeakers, LEDs, various types of buttons, knobs and potentiometers, as well as cardboard, foils and tapes of different colors. / CC BY Kati Hyyppä

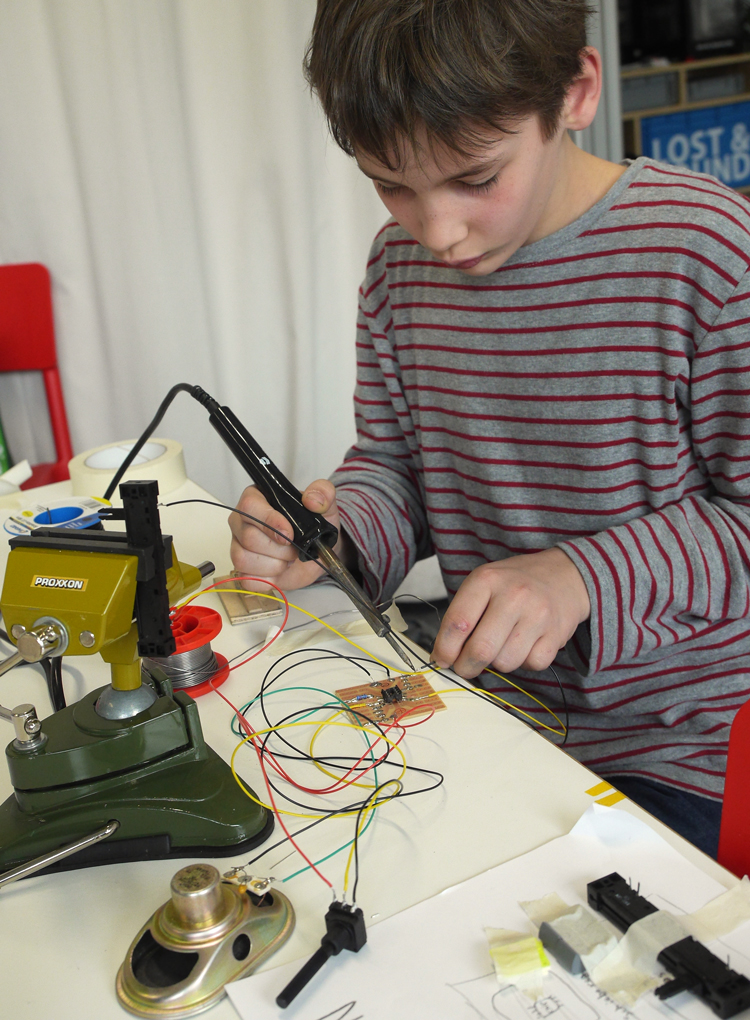

We started by soldering small circuit boards for the synthesizers. Helping hand was available when needed, although some participants were already quite pros with soldering. / CC BY Kati Hyyppä

ATtiny85 schematic that was used as a soldering instruction. The microcontrollers were pre-programmed such that it was possible to connect 1-3 potentiometers (rotary ones or sliders) to the analog input pins. Alternatively, photoresistors could have been also used, but the potentiometers turned out to be more of a hit. / CC BY Kati Hyyppä

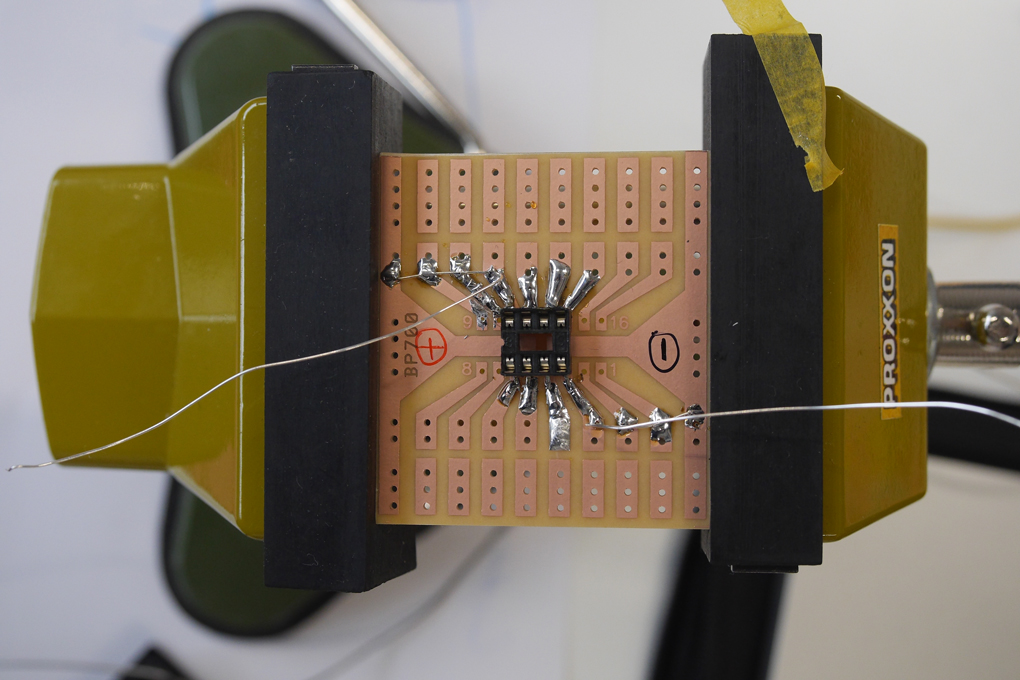

The first thing to solder were the plus and minus connections to the IC socket. / CC BY Kati Hyyppä

After the power lines were ready, the loudspeaker, LEDs and potentiometers of everyone's choice were soldered in place. / CC BY Kati Hyyppä

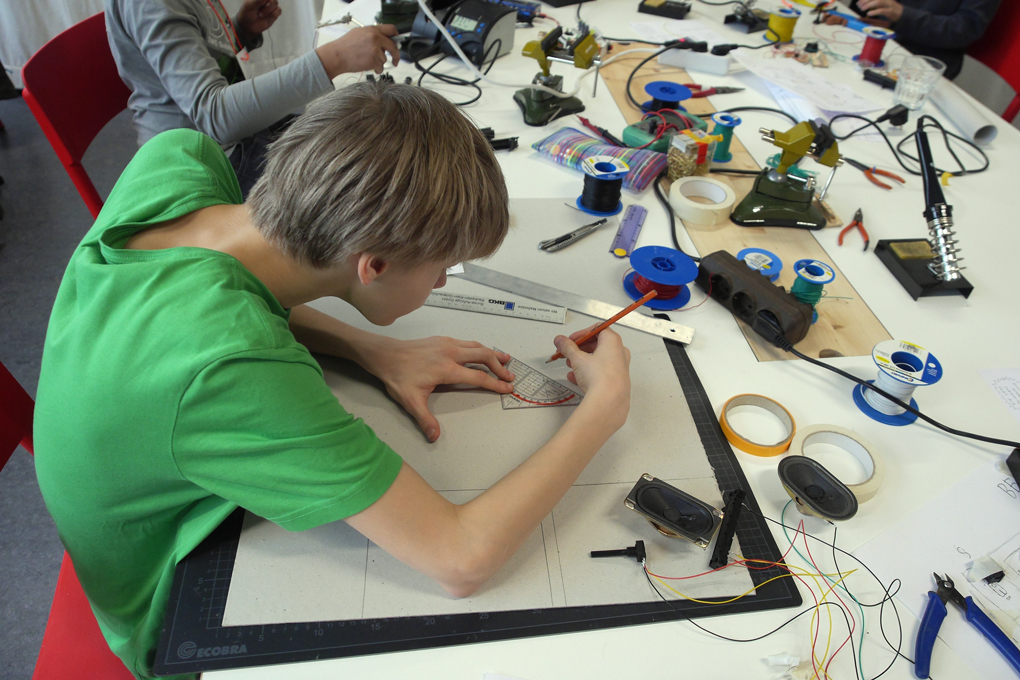

Making a case for the synth began by making a sketch, which outlined how all the parts would be placed. / CC BY Kati Hyyppä

Some example synthesizers were also provided for inspiration. / CC BY Kati Hyyppä

Thick recycling cardboard sheets were available for making a sturdy case. / CC BY Kati Hyyppä

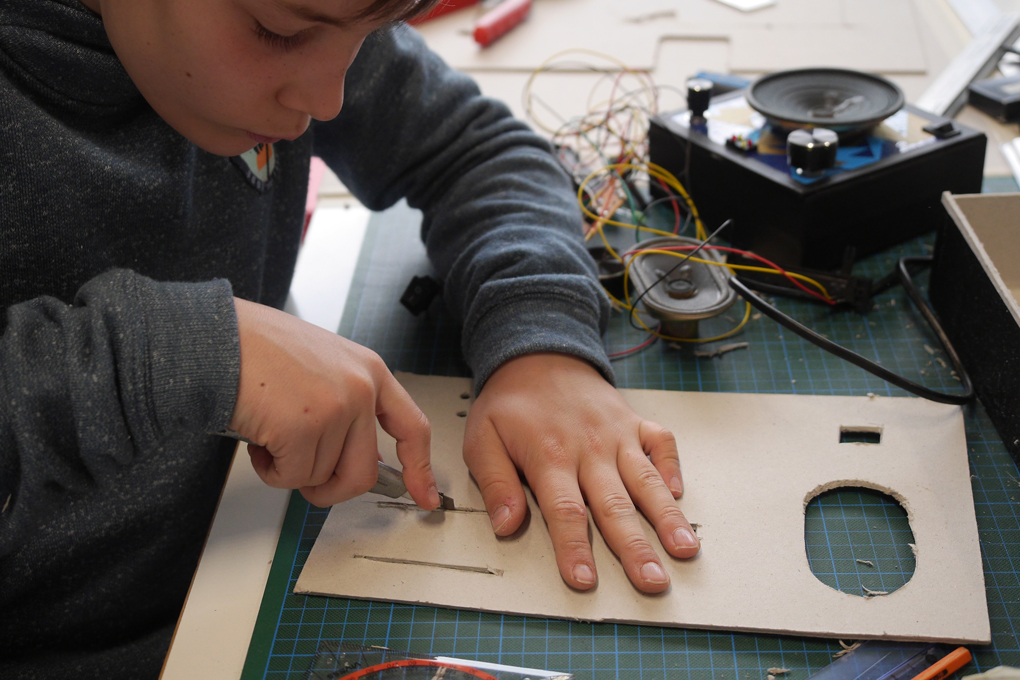

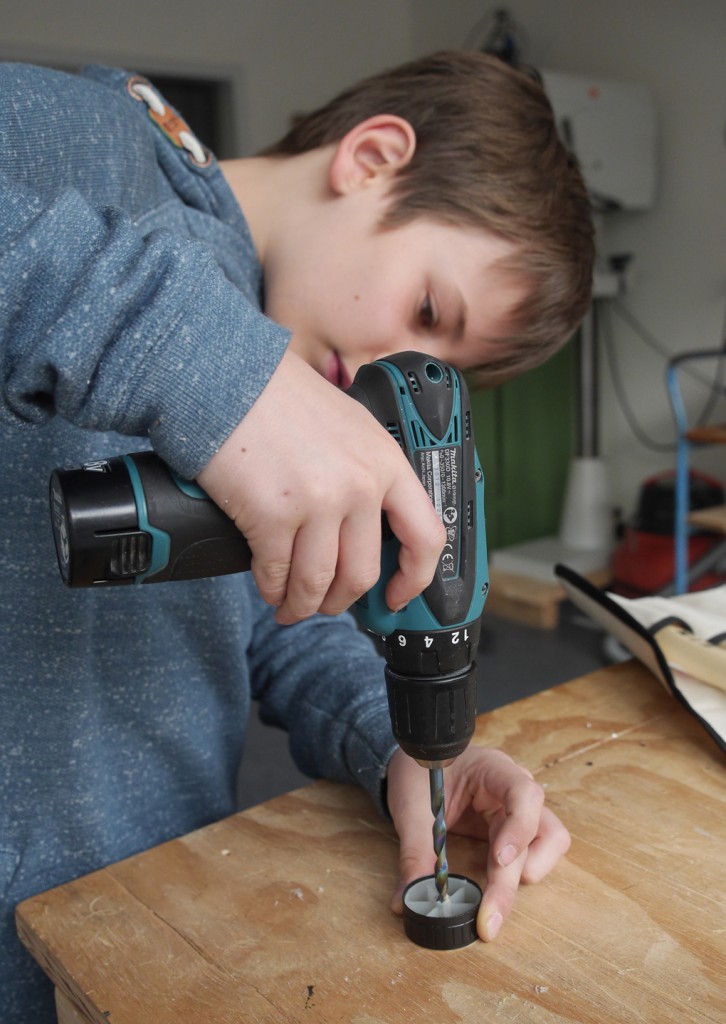

Holes were cut to the cardboard for placing the speaker, potis, LEDs, power switch and other parts. / CC BY Kati Hyyppä

Some of the knobs for the potis needed little bit adjustment in order to fit perfectly. / CC BY Kati Hyyppä

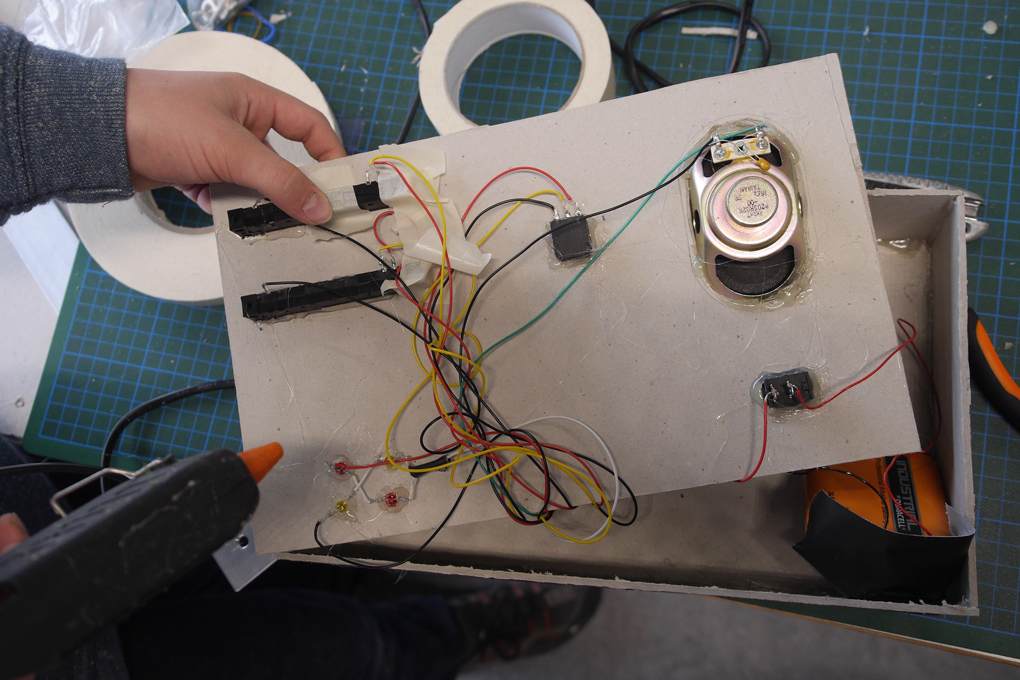

Hot glue was essential for keeping all the parts in place, although too much of it in wrong places caused occasional headaches and repairs. / CC BY Kati Hyyppä

Testing the sliders. Do they still move after hot glueing? / CC BY Kati Hyyppä

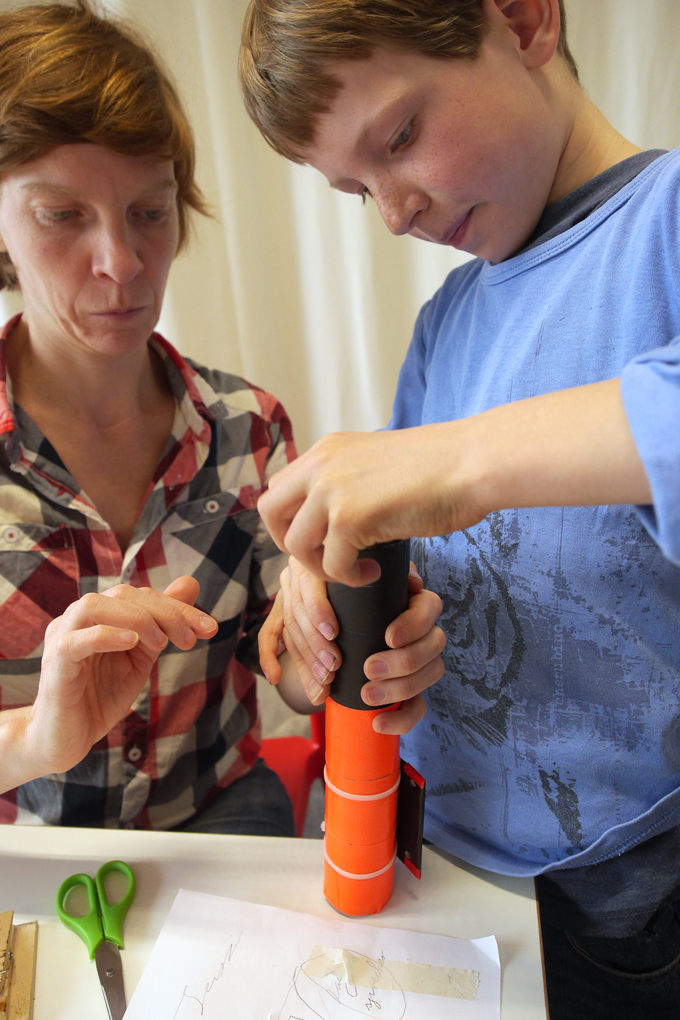

Tube-shape was an alternative to he box-shaped cases. The shape amplified also the sound when the speaker was placed in the end of the tube, facing inwards. / CC BY Kati Hyyppä

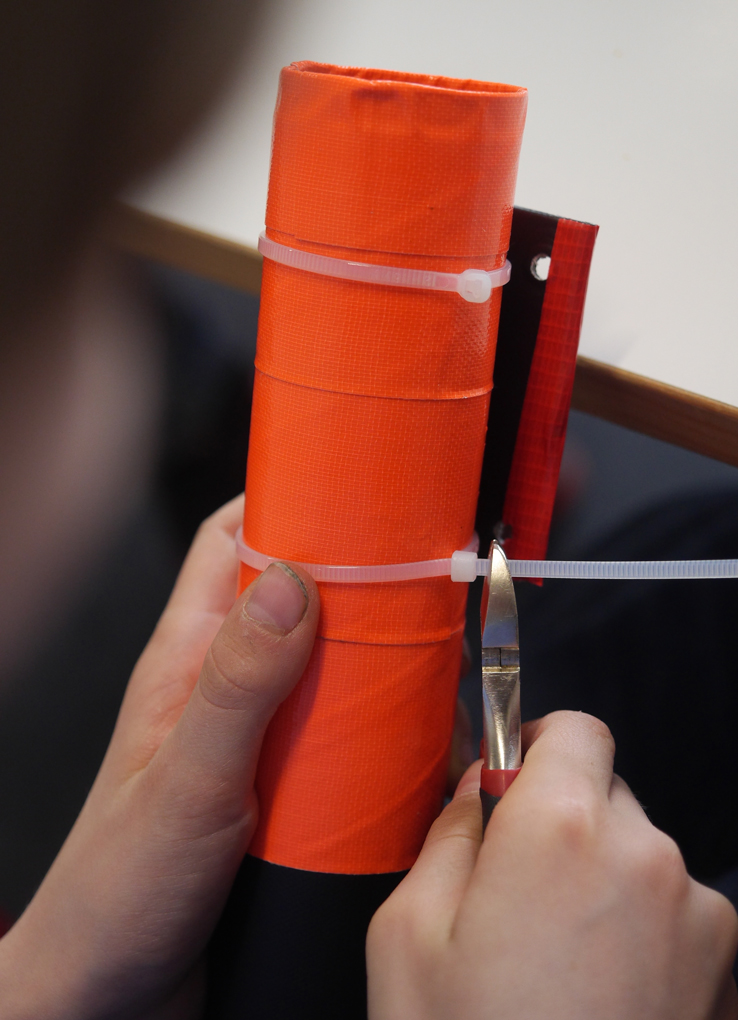

Tie wraps were essential for the tube-shaped synth. Here a battery holder is being attached to its place. / CC BY Kati Hyyppä

One of the participants, who was a FabLab pro, wanted to use the laser cutter in order to make himself a synth case. Here the parts of the first version are ready. / CC BY Kati Hyyppä

In the second version holes for the speaker, sliders, LEDs, button, switch, and volt meter were in place and all the parts could be assembled together. / CC BY Kati Hyyppä

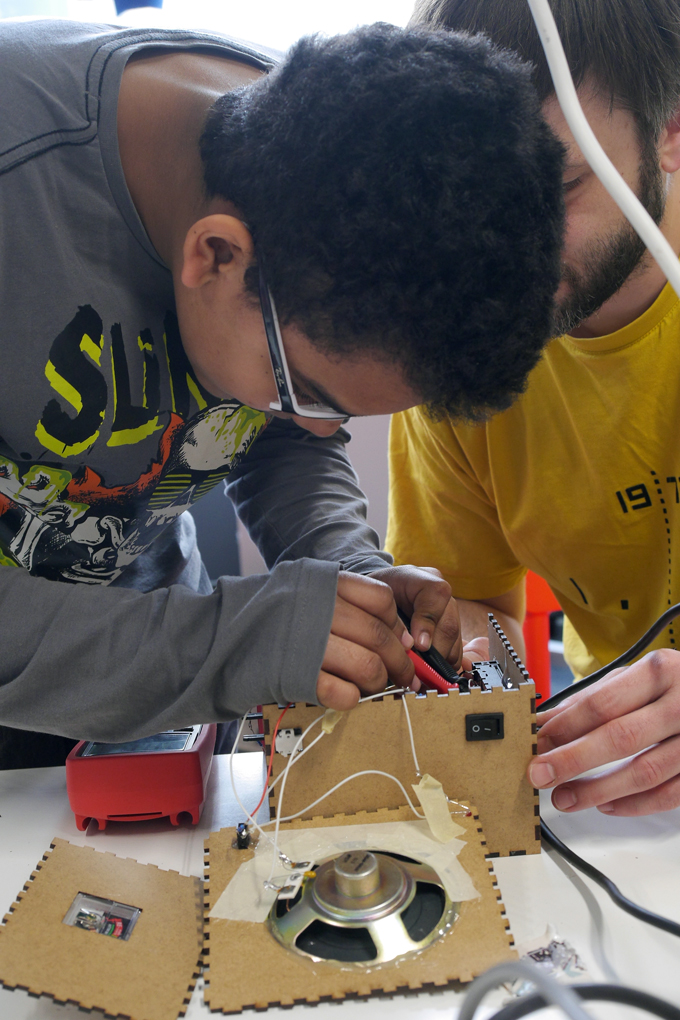

Testing one last time that all works before cloing the case for good. Multimeter was used a lot in the workshop. / CC BY Kati Hyyppä

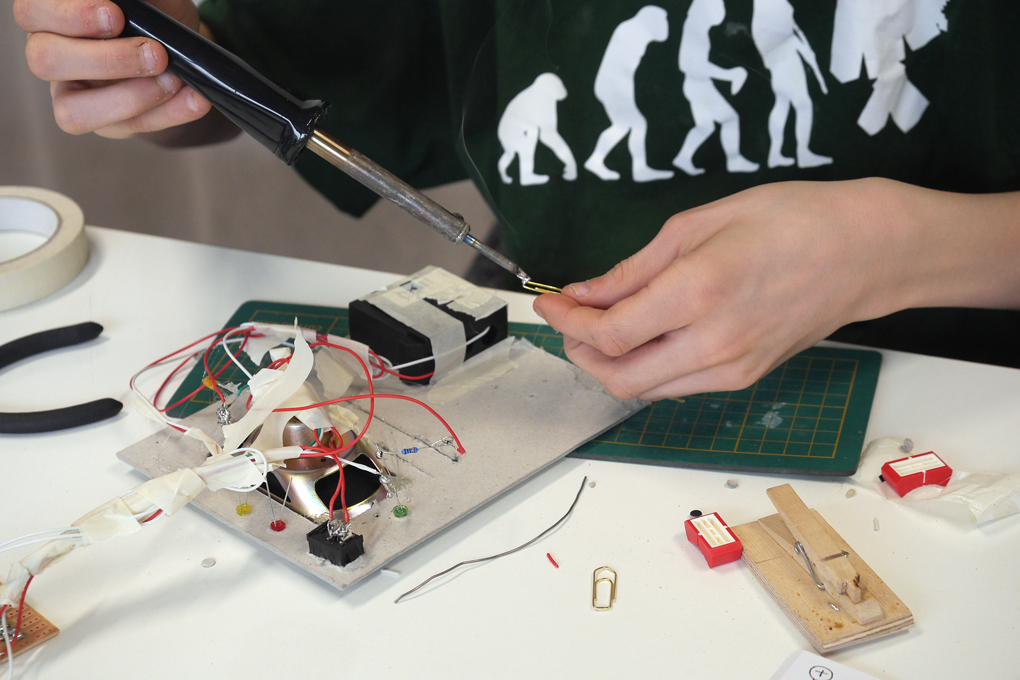

Here last missing pieces are also being prepared, namely paper clips for the power wires, so that the electronics can be connected to a 4.5V pocketable battery. / CC BY Kati Hyyppä

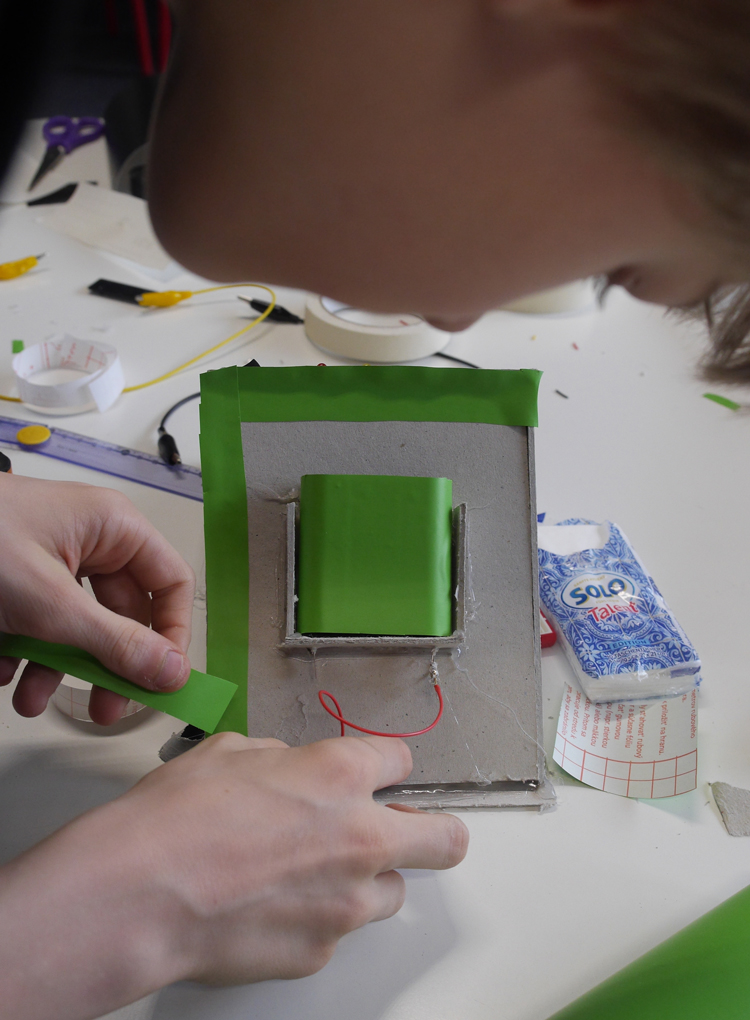

Beautifying the battery and the back of the synthesizer. / CC BY Kati Hyyppä

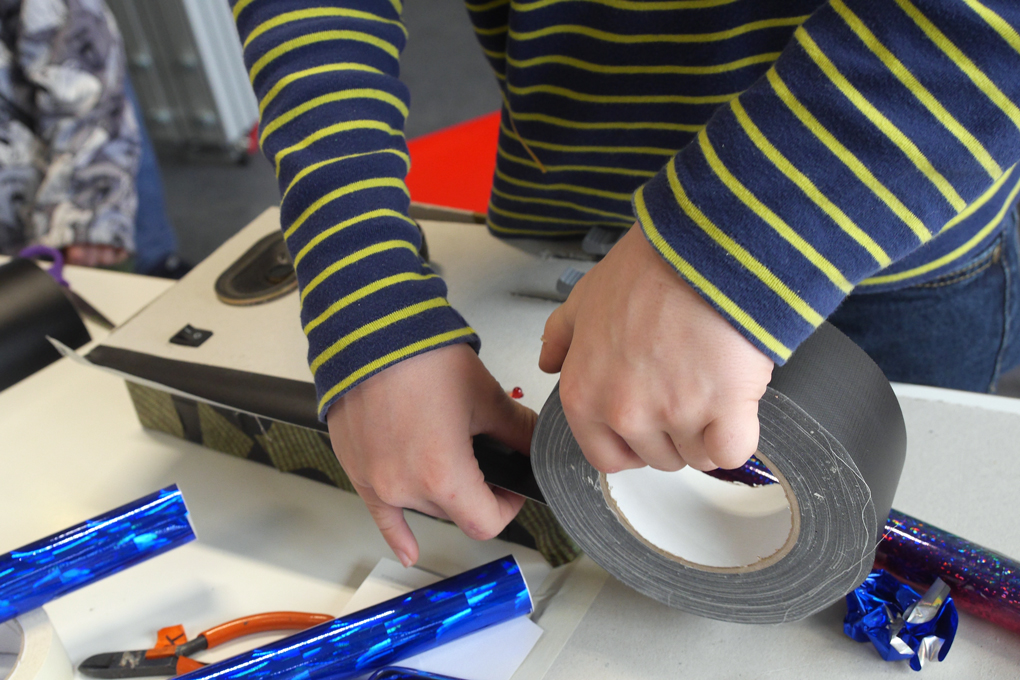

Black gaffa tape being applied to edge decoration. / CC BY Kati Hyyppä

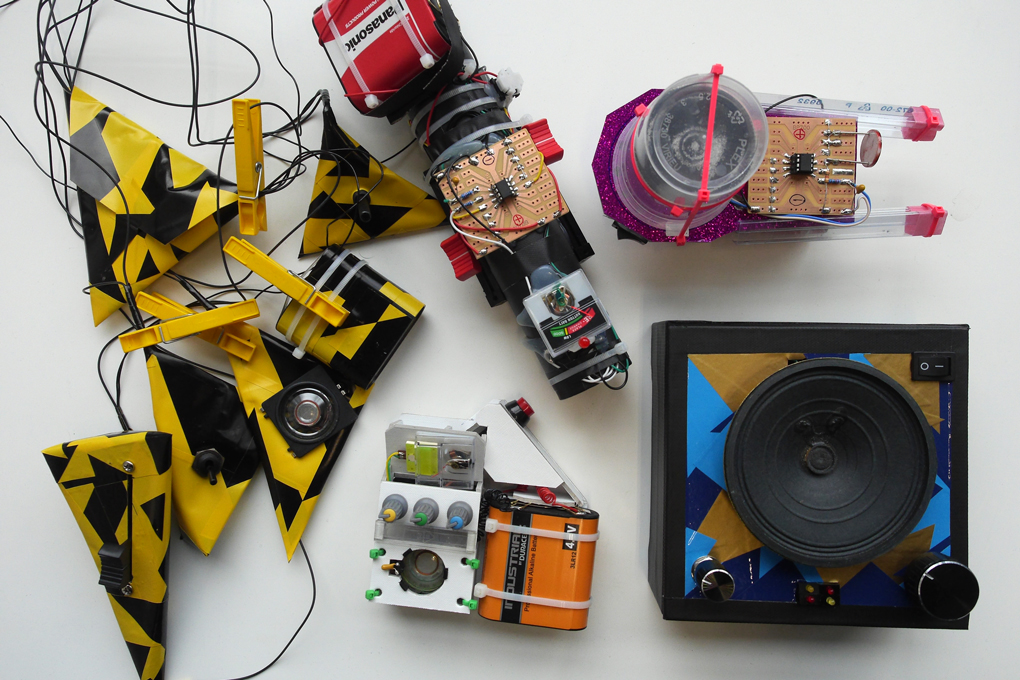

The 2-slider, 1-knob, 4-LED megasparkle synth is finished. / CC BY Kati Hyyppä

The finished tube-synth, which also goes by the name 'Gaffa' in action. Here you can also see the volmeter, which is connected in parallel with the speaker. / CC BY Kati Hyyppä

This synth goes by the cryptic name 'S/Y W-P', which sounds like a pretty convincing synth name if you ask me. / CC BY Kati Hyyppä

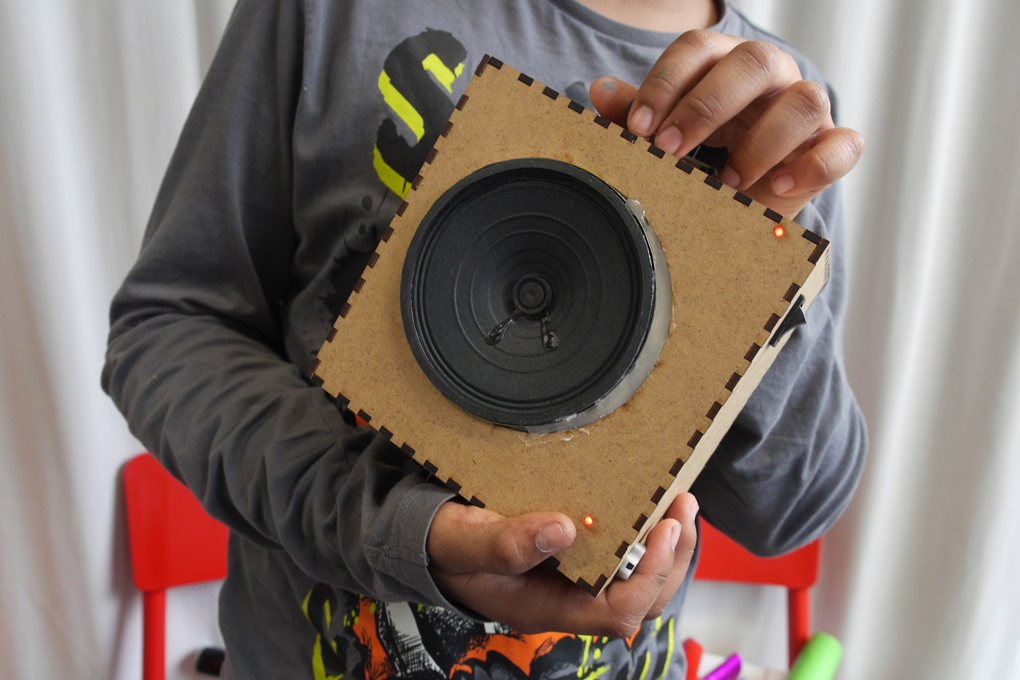

The MDF wonder box in its final, sealed shape. / CC BY Kati Hyyppä

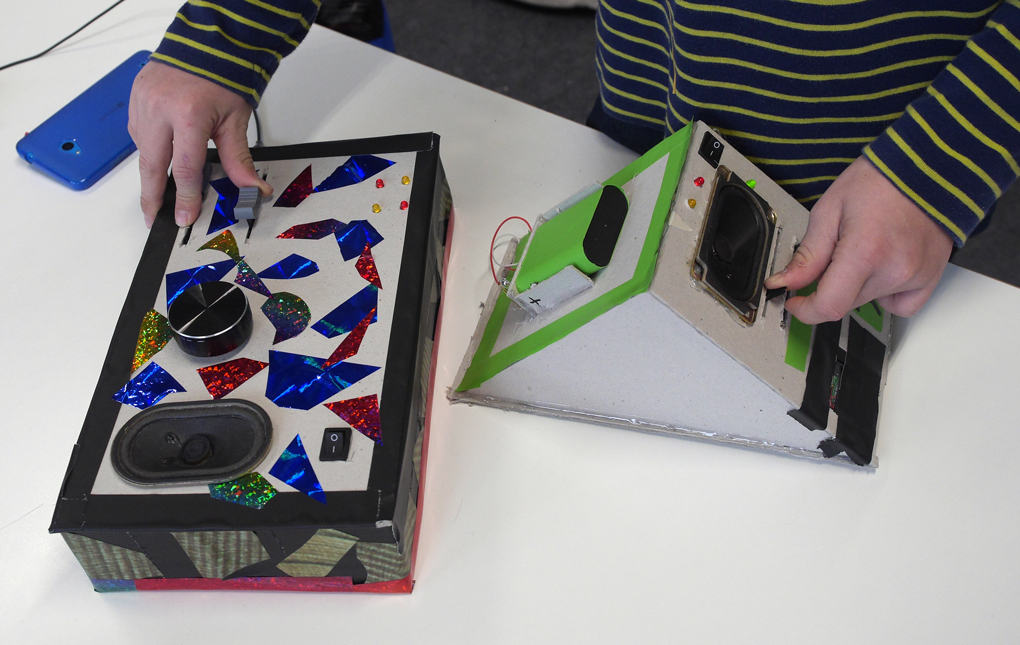

Next generation noise artist's kicking debut: playing two synths is parallel. / CC BY Kati Hyyppä
